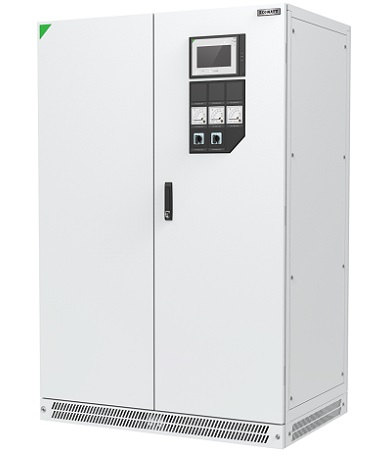

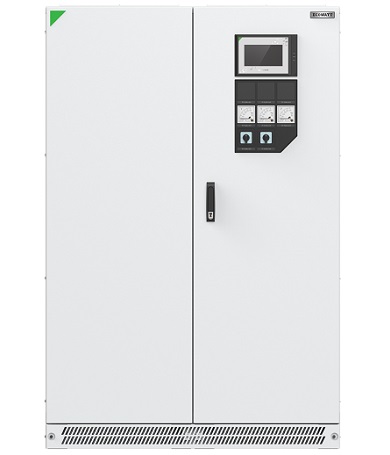

Ecowatt R6000 series industrial rectifier/charger is based on SCR control technology, which can charge nickel-cadmium batteries or lead-acid batteries while supplying power to the DC load, and can also be used as an independent DC power supply without batteries. In addition to the independent components, the charger can also be assembled with some options. The counter is installed on the ground, and can also be designed separately to meet the requirements of the special environment.
Application fields:It can be widely used in oil, petrochemical, power plant, power transmission and distribution, natural gas, electric power, Marine engineering, heavy industry, mining, transportation and other industries.It can be used in a wide range of applications in the machinery manufacturing industry, electronic equipment maintenance, mining exploration, ship navigation, data center and servers, communication base stations, industrial automation, control systems, aerospace, medical equipment, renewable energy systems, electric forklift truck and other industrial equipment industries.
Performance features:
Full digital control, high performance DSP, silicon control control technology.
Strong and durable industrial design, perfect protective device.
Fully flexible design, easy installation, operation and maintenance, to meet the personalized needs of customers.
Fully intelligent battery management, temperature compensation charging function, manual or automatic floating charge conversion, compatible with all industrial types of batteries.
7-inch TFT LCD touch screen, multi-language man-machine interface, charging status is clear, real-time alarm and event record can be queried.
With over voltage, under voltage, over current, short circuit, reverse connection and over temperature protection.
It has the voltage and current correction function to ensure the voltage stabilization accuracy of the charger.
It can be run redundantly in parallel.
Suitable for Chinese standard power scenarios.
Rated Input Voltage(Vac):400V Line to Line
Rated voltage(Vdc):24/48/60/110/125/220
Rated current(A):10~1000
Special requirements can be customized
