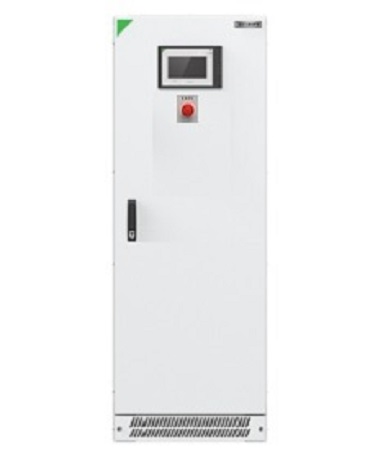

The GR-GEAM7K-33 series power grid simulation source is an AC power supply with high precision, high dynamics, high standards, and comprehensive power grid characteristic simulation. It can perform various grid adaptability tests on devices connected to the grid, and can output stable voltage and frequency. It can also provide power supply environments with various power quality related characteristics such as voltage changes, frequency changes, harmonics, interharmonics, imbalances, and flicker according to relevant national standards. In addition to providing a power environment for electrical equipment, the power grid simulator can also receive the energy returned by the load and feed it back to the power grid, which can save energy and improve the testing environment.
Application Field:Widely used by various power equipment manufacturers in fields such as power electronics, motor drives, new energy, testing instruments, etc.
Performance features:
DSP fully digital control, high reliability.
Different output modes such as three-phase independent, three-phase linkage, and three-phase parallel can be selected.
It can simulate the high and low voltage crossing, flicker, harmonics and other characteristics of the power grid, as well as simulate the islanding characteristics of the power grid.
There are three programming methods: Step, List, and Dyna.
Adopting high-speed digital control technology, the output accuracy reaches 0.1%.
Adopting PWM rectification technology, the power factor is greater than 0.99, the input harmonic is less than 3%, and the efficiency is greater than 93%.
Support custom curve simulation and one click import function;
Supports multiple output modes such as CC, CV, CP, CR, etc;
Accurate measurement of electrical parameters and superior electrical performance.
The protection functions for output undervoltage/overvoltage, overcurrent, overload, input undervoltage/overvoltage, overtemperature, etc. are complete.
A friendly human-machine interface.
Integrated design, easy to maintain.
Complete communication function, capable of remote setting and control of power on/off.
It has a comprehensive customer programmable curve working mode and built-in wav.
