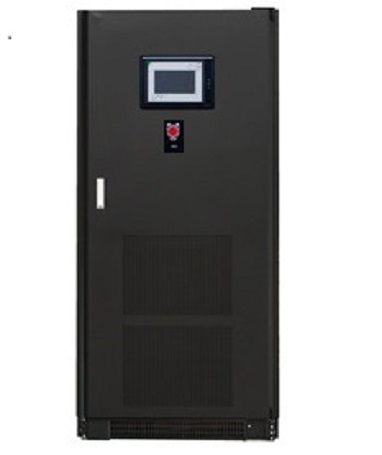

The MEGA6K series regenerative DC Load is a high-power power electronic device carefully crafted for "green energy", integrating advanced technologies in today's power electronics and self-control fields. The product has high cost-effectiveness, provides numerous adjustable parameters, is automatic, intelligent, convenient for production, and improves production efficiency. This product utilizes advanced power electronic conversion and control technology to convert high-voltage DC power into AC power and feed it back to the grid to achieve aging testing and load capacity verification of equipment, greatly saving energy consumption, reducing thermal pollution, reducing the need for grid expansion, and ensuring the safety and reliability of production operations.
Application fields:It can be widely used in energy saving and safety aging of ev charging pile and charging pile module, and on-site acceptance test. It can also be used for the energy saving aging of photovoltaic energy storage system, power operation power supply system, high power battery charging equipment, high power switching power supply and various high power AC DC system.
Performance features:.
The wide working voltage range can perfectly match the charger / charging pile field.
With constant flow (CC), constant voltage (CV), constant power (CP), maximum power (MPPT) and other operation modes.
The highly efficient PWM modulation algorithm is adopted to effectively reduce the switching loss.
Built-in isolation transformer, AC / DC completely isolated.
Color touch screen design, beautiful display, easy to operate.
Multiple input / output protection functions.
Perfect communication function and interface, with multi-functional remote remote control test.
RS232, RS485, LAN, CAN and other optional communication interfaces
Built-in CAN communication bus can directly communicate with BMS to form a DC charging pile test system, which is specially designed for the test system of simulated charging process and various faults.
Applied in the online debugging, production line testing, field verification and other occasions of DC charging pile products, it can effectively get rid of the testing limitations of the real vehicle as a testing device.
Power range: 10 ~ 400kW
Working mode: CC /CV/CP/ MPPT, output isolation
Special requirements can be customized
