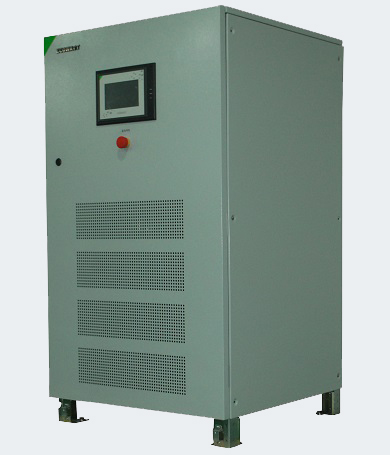

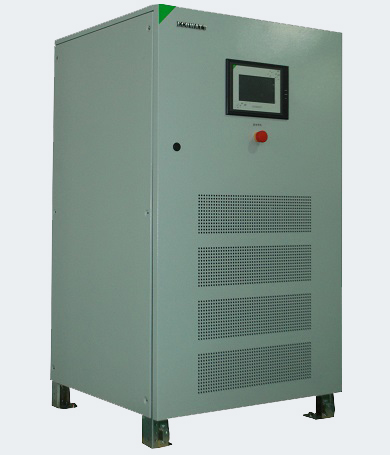

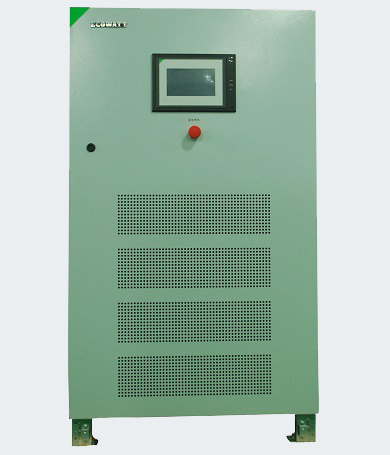

EAM6K-31 series Programmable AC power supply is a three-in single-out Programmable AC power supply with a wide range of applications, in addition to general commercial use, can also be used in low frequency start motor or air conditioning compressor test sites. The output voltage of the system is a standard pure sine wave, which can generally be maintained at a very low distortion rate.
Application fields:It can be used as a special frequency conversion power supply for laboratories of the Academy of Sciences and various quality inspection units, or as a special frequency conversion power supply for debugging or testing of motor manufacturers.
Performance features:.
Wide output voltage and frequency range.
Electrical parameters such as output voltage, frequency and operating time can be programmed to set.
Using advanced pulse width modulation (PWM) technology, compared with similar products have a small size, light weight and other characteristics.
Automatically save all the electrical parameters set by the user, and control the output according to the combination of default voltage and frequency.
Standard equipped with remote control interface.
Power range: 10 ~ 200kVA
Working mode: 3/1 phase output, dual conversion online, output isolation
Special requirements can be customized
