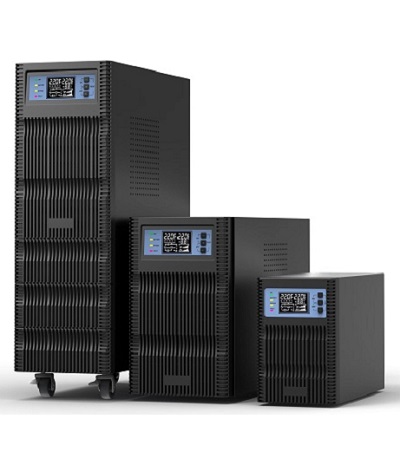

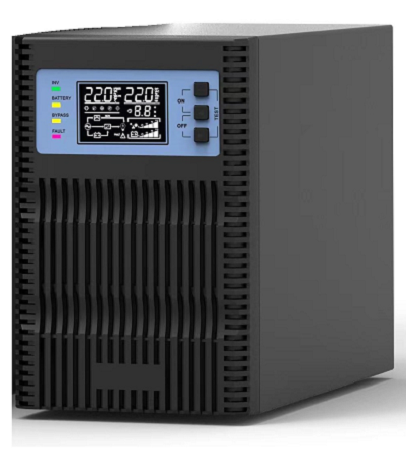

S2000E series standard machine tower uninterruptible power case is small, high power density, can choose a variety of voltage system, suitable for single into single out system, system board with compatible tower / rack model design, after the replacement case can also be directly installed in 19 inch standard server cabinet, convenient integration with the server use, output power factor of 1.0.
Application fields:Widely used in finance, education, agriculture, military industry, new energy, electric power and other fields.
Performance features:
Pure online high-frequency UPS, with a voltage adjustment circuit, can operate safely in various environments, to provide a stable power supply.DSP control, with excellent performance and comprehensive protections.
Output power factor 1.0, offering more stronger load capability.
High efficiency,saving electricity cost.
Ultra Wide Input: 110V-300Vac , well compatible with Gen-set.
PCB with conformal coating for critical environment.
EPO (emergency power off) and ECO function.
Compact design to save installation space.
Configurable output:208/220/230/240VAC with LCD screen.
AC and battery cold start function.
Default RS232& USB and EPO interface , SNMP card （Optional）.
Charger current settable,extending battery lifespan and satisfying fast charging requirement.
Standard model with external battery interface for extending back up time.
Battery test and EOD voltage settable on LCD.
Simple design for fast and easy maintenance.
Intelligent fan running, varying according to load and temperature.
Default battery breaker for safety and convenience.
Manual bypass for 6-10kVA (Optional）.
Strong DSP core and open design architecture, the machine has a strong customability.
Power range: 1 ~ 10KVA
Working mode: 1/1 phase, double transformation Online
Special requirements can be customized
