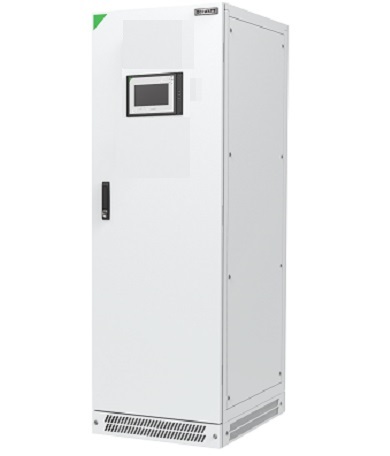

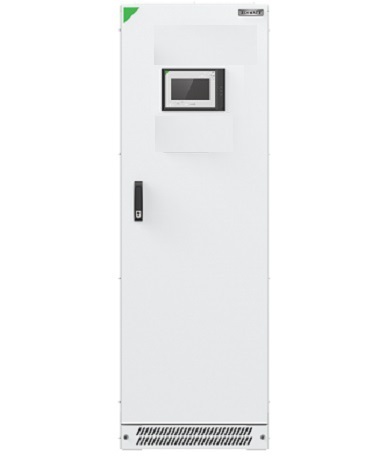

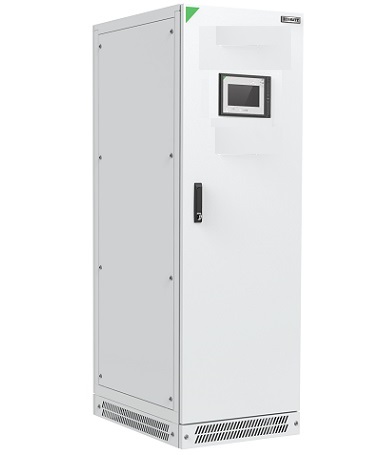

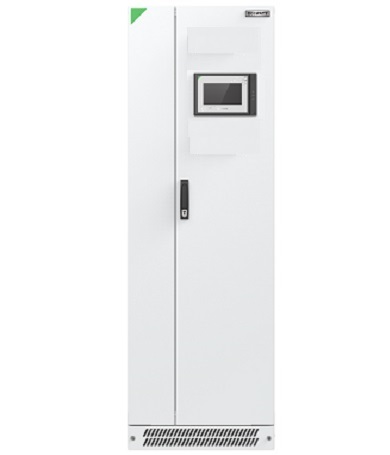

S7000 series 3/1 phase industrial UPS is designed for oil and natural gas, chemical, power, mining / metal, industrial production and process control, Marine engineering, ship, rail transit and other harsh environmental applications, with high stability, high reliability and high performance of power supply system. The UPS system adopts a new integrated design, and the rectifier adopts the high-frequency IGBT control scheme. The input performance index is greatly improved compared with the power frequency rectifier scheme. The output power factor is optional at 0.8/0.9, and the cabinet can choose welding or splicing structure according to the operating environment, which is suitable for the industrial application environment with high index requirements.
Application: Dedicated to oil, natural gas, chemical industry, nuclear power, electric power, industrial manufacturing, metallurgy, military industry, aviation, rail transit, shipbuilding and other industrial fields with harsh application environment. There are also unique designed models that are specifically tailored to application scenarios such as power, offshore engineering, nuclear power, and ship-mounted.
Performance features:
Super strong load capacity, super wide input voltage range and extremely strong resistance to harsh environment design, unique protection design, super impact resistance, greatly improve the reliability of the system.
Large touch screen display, friendly human-machine interface, multi-channel input / output dry contact point, perfect communication and remote monitoring functions, built-in Modbus communication protocol.
Internal modular design, control power redundant design, intelligent fan speed regulation, support fan hot plug replacement, and built-in manual maintenance bypass, can realize continuous electrical maintenance and unattended.
Support by the wall installation, the main components, single board support before the maintenance.
Support the independent output configuration of AC bus contact switch in industrial occasions.
Strict pre-factory aging test, perfect protection function, history record can be checked, super long average fault-free time and super short average fault maintenance time.
It has intelligent battery management, complete battery protection, self-start and battery cold start function after battery discharge termination, ultra-wide battery voltage range, and also supports various types of battery access.
A variety of working modes can be selected, including intelligent machine integration, intelligent LBS technology, ECO mode, energy storage operation mode, and shared battery operation mode.
Power range: 10 ~ 200KVA
Working mode: 3/1 phase, double transformation online, input/output full isolation
Special requirements can be customized
