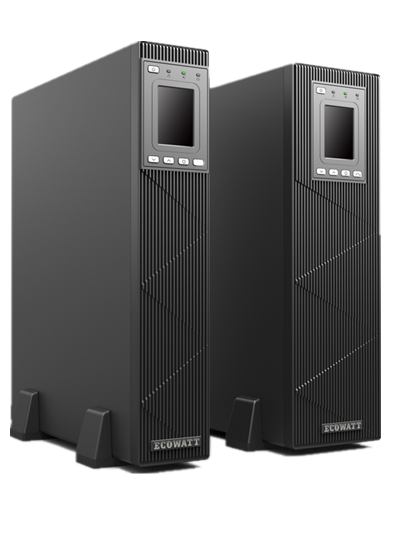

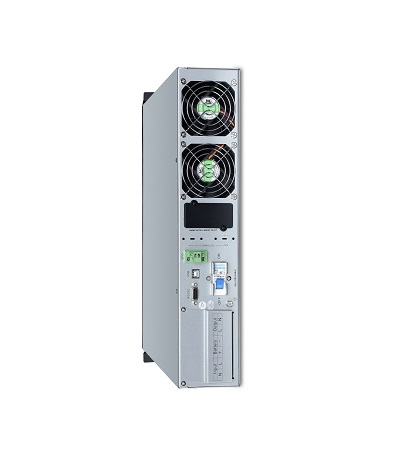

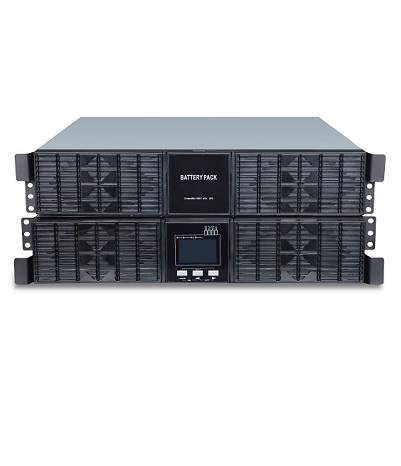

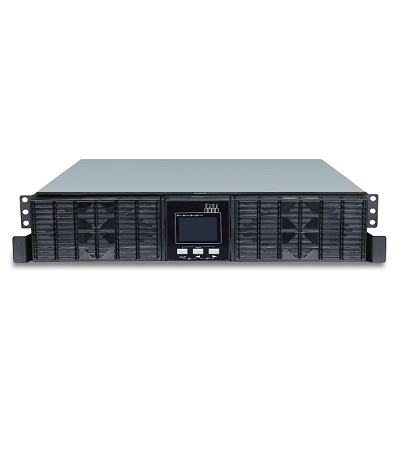

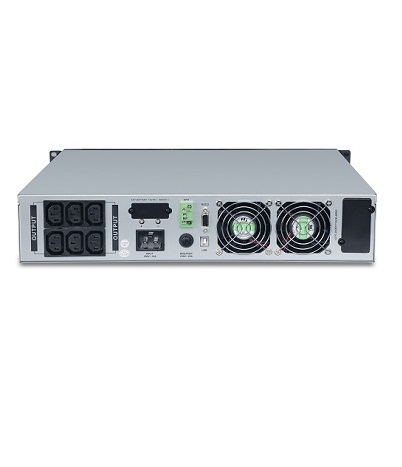

S2000E series long delay frame uninterruptible power high power density, can be adapted to a variety of voltage adjustment, compatible tower / rack installation, can be installed in 19 inch standard server cabinet, convenient integration with the server use, output power factor of 1.0, is the first choice of small data center.
Application fields:Widely used in IDC data center, network server and workstation, control room, etc.
Performance features:
DSP control, with excellent performance and comprehensive protections.
Output power factor 1.0, offering more stronger load capability.
High efficiency,saving electricity cost.
Ultra Wide Input: 110V-300Vac , well compatible with Gen-set.
PCB with conformal coating for critical environment.
EPO (emergency power off) and ECO function.
Compact design to save installation space.
Configurable output:208/220/230/240VAC with LCD screen.
AC and battery cold start function.
Default RS232& USB and EPO interface , SNMP card （Optional）.
Charger current settable,extending battery lifespan and satisfying fast charging requirement.
Standard model with external battery interface for extending back up time.
Battery test and EOD voltage settable on LCD.
Simple design for fast and easy maintenance.
Intelligent fan running, varying according to load and temperature.
Default battery breaker for safety and convenience.
Manual bypass for 6-10kVA (Optional）.
Power range: 1 ~ 10KVA
Working mode: 1/1 phase, double transformation Online
Special requirements can be customized
