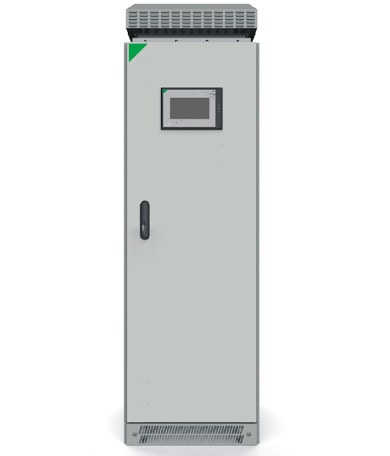

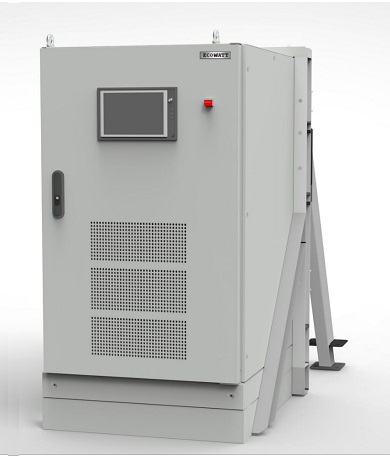

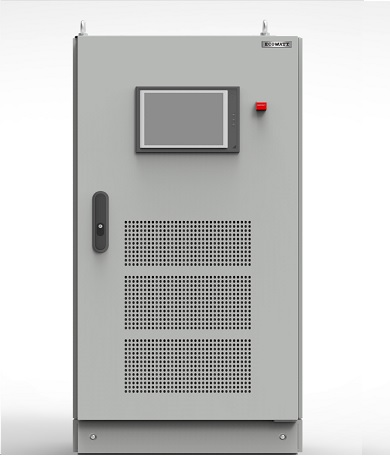

The S6000-33H series wind power UPS is customized by the company according to the special needs of the wind power industry. The product has a high level of protection, strong resistance to grid fluctuations and harsh environments. The system integrates intelligent fully digital control, rigorous protection and anti harsh environment design, multiple redundant high reliability design, complete protection measures, super strong network management, friendly human-machine interface and a series of mature designs, which can meet all the needs of the wind power industry.
Application fields: Specially designed for wind power applications in harsh environments such as offshore wind power, offshore platforms, and onshore wind power, offshore wind power also supports floating and fixed installations.
Performance features:
Multi-DSP control, independent circuit detection and multiple fault protection, with software running fly bypass automatic takeover function, reliable and safe.Multi DSP control, independent circuit detection, and multiple fault protection, with software run over bypass automatic takeover function, reliable and safe.
Built in multiple communication ports and various dry node signal interfaces enable real-time remote network management.
Strong load-bearing capacity, strong output short-circuit resistance, circuit board with special three proof treatment process, and strong adaptability to harsh environments.
Ultra long mean time to failure and ultra short mean time to repair, modular design, full frontal operation, built-in manual maintenance bypass, easy to maintain.
The system adapts to different power grid systems, and the output voltage frequency can be configured on-site (50Hz or 60Hz).
Unique air duct and protection design, standard IP30 protection level, optional higher level protection components.
Contains various specialized technologies suitable for unmanned operation, such as fast startup and self start.
Unique air duct and protection design, standard IP30 protection grade, optional higher level protection components.
Power range: 10 ~ 200KVA
Working mode: 3/3 phase, double transformation online, input/output full isolation
Special requirements can be customized
